Do not understand the create_box command

cara · October 19, 2023, 2:18pm

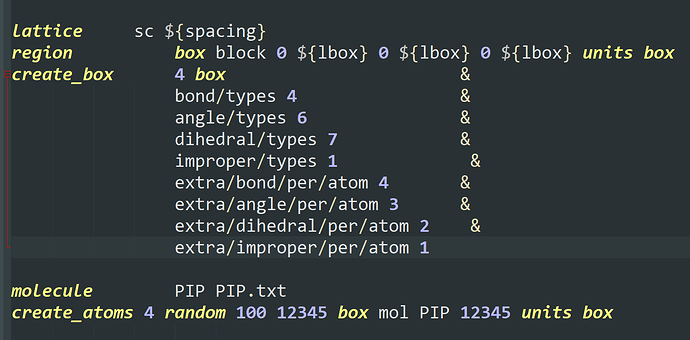

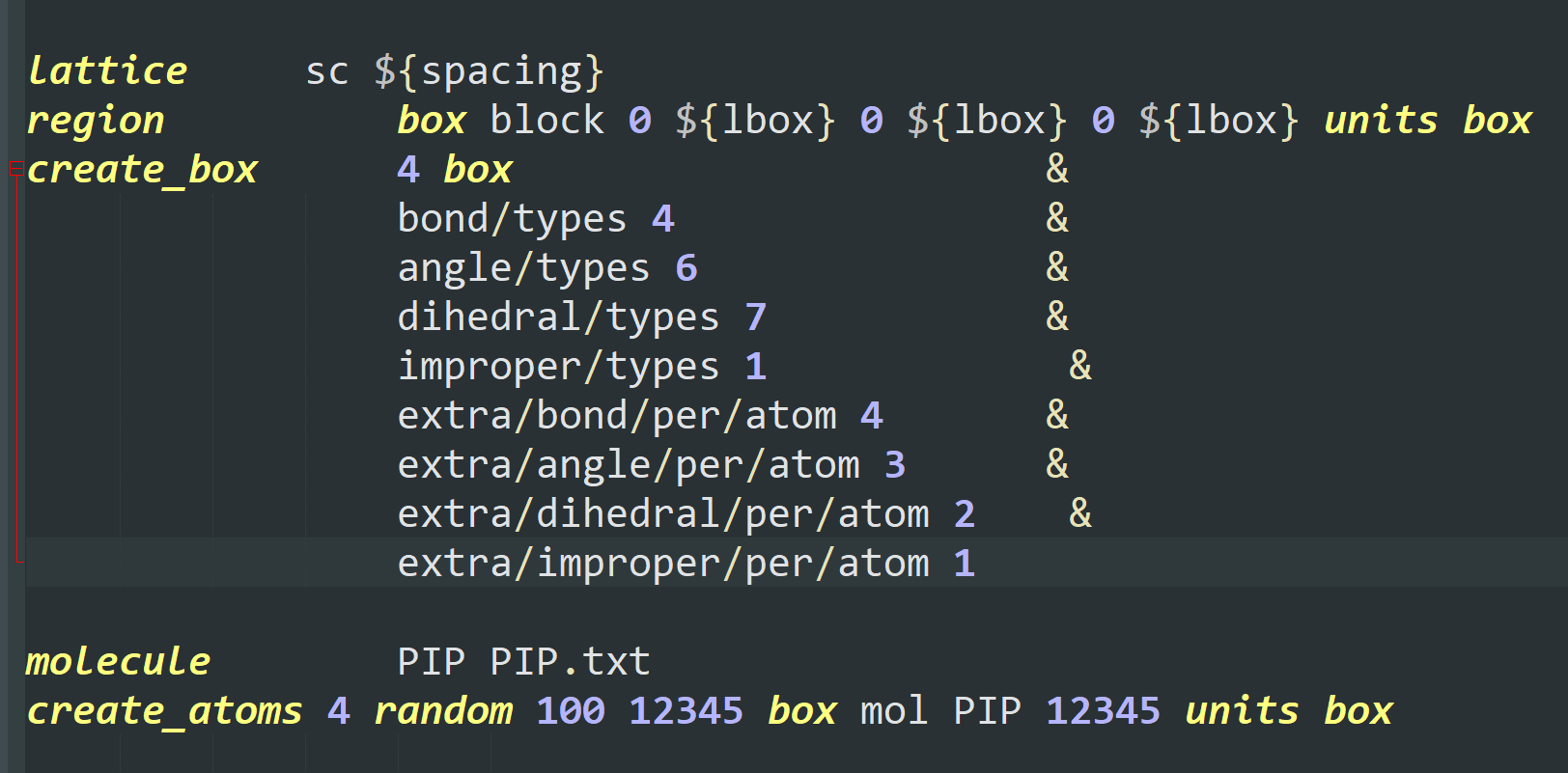

I want to add some PIP molecules to the system. The pip.data is established in materials studio converting by mis2lmp.exe. And I wrote the PIP.text according to the pip.data. However, I got trouble in the create_box command. I don’t konw the value of the “extra/bond/per/atom”, the value of the “extra/angle/per/atom” and the value of the “extra/dihedral/per/atom” refer to what. Every time I run the program, the error is “Molecule auto special bond generation overflow.” I think maybe I used create_box command wrong, but I don’t konw how to correct it. I hope someone can help me. Thanks a lot.

Following is the pip.data.
LAMMPS data file. msi2lmp v3.9.9 / 05 Nov 2018 / CGCMM for .\pip

 16 atoms
 16 bonds
 30 angles
 42 dihedrals
  2 impropers

4 atom types
4 bond types
6 angle types
7 dihedral types
1 improper types

-4.037413097     1.937204622 xlo xhi
-1.395777808     3.943447890 ylo yhi
-1.868375189     1.893487555 zlo zhi

Masses

1 14.006700 # n3
2 12.011150 # c2
3 1.007970 # hn
4 1.007970 # h

Pair Coeffs # lj/cut/coul/long

1 0.1669999743 3.5012320066 # n3
2 0.0389999952 3.8754094636 # c2
3 0.0000000000 0.0000000000 # hn
4 0.0380000011 2.4499714540 # h

Bond Coeffs # harmonic

1 356.5988 1.4700 # n3-c2
2 457.4592 1.0260 # n3-hn
3 322.7158 1.5260 # c2-c2
4 340.6175 1.1050 # c2-h

Angle Coeffs # harmonic

1 86.3000 112.0000 # c2-n3-c2
2 41.6000 110.0000 # c2-n3-hn
3 50.0000 109.5000 # n3-c2-c2
4 44.4000 110.0000 # c2-c2-h
5 57.3000 109.5000 # n3-c2-h
6 39.5000 106.4000 # h-c2-h

Dihedral Coeffs # harmonic

1 0.1333 1 3 # c2-n3-c2-c2
2 0.1333 1 3 # c2-n3-c2-h
3 0.1333 1 3 # hn-n3-c2-c2
4 0.1333 1 3 # hn-n3-c2-h
5 0.1581 1 3 # n3-c2-c2-n3
6 0.1581 1 3 # n3-c2-c2-h
7 0.1581 1 3 # h-c2-c2-h

Improper Coeffs # cvff

1     0.0000   0   0 # c2-n3-c2-hn

Atoms # full

  1      1   1  0.000000    -2.474156782     1.268292122     0.330146493   0   0   0 # n3
  2      1   2  0.000000    -1.778245099     0.031909754    -0.186352597   0   0   0 # c2
  3      1   2  0.000000    -0.303136828     0.050902422     0.255088784   0   0   0 # c2
  4      1   1  0.000000     0.373974982     1.278718503    -0.304920390   0   0   0 # n3
  5      1   2  0.000000    -0.321884506     2.515264494     0.211388608   0   0   0 # c2
  6      1   2  0.000000    -1.797068954     2.496065671    -0.229961299   0   0   0 # c2
  7      1   3  0.000000    -3.537413097     1.254597474     0.011740002   0   0   0 # hn
  8      1   4  0.000000    -2.289242491    -0.895777808     0.235323721   0   0   0 # h
  9      1   4  0.000000    -1.833705760     0.012439858    -1.324812564   0   0   0 # h
 10      1   4  0.000000     0.222066675    -0.883201907    -0.133705889   0   0   0 # h
 11      1   4  0.000000    -0.247432421     0.072379544     1.393487555   0   0   0 # h
 12      1   3  0.000000     1.437204622     1.292451665     0.013544842   0   0   0 # hn
 13      1   4  0.000000     0.188030819     3.443447890    -0.210585219   0   0   0 # h
 14      1   4  0.000000    -0.266153624     2.534910192     1.349840338   0   0   0 # h
 15      1   4  0.000000    -1.852606463     2.474325256    -1.368375189   0   0   0 # h
 16      1   4  0.000000    -2.322227579     3.430170544     0.158878506   0   0   0 # h

Bonds

 1   1      1      2
 2   1      1      6
 3   2      1      7
 4   3      2      3
 5   4      2      8
 6   4      2      9
 7   1      4      3
 8   4      3     10
 9   4      3     11
10   1      4      5
11   2      4     12
12   3      5      6
13   4      5     13
14   4      5     14
15   4      6     15
16   4      6     16

Angles

 1   1      2      1      6
 2   2      2      1      7
 3   2      6      1      7
 4   3      1      2      3
 5   4      3      2      8
 6   4      3      2      9
 7   5      1      2      8
 8   5      1      2      9
 9   6      8      2      9
10   3      4      3      2
11   4      2      3     10
12   4      2      3     11
13   5      4      3     10
14   5      4      3     11
15   6     10      3     11
16   1      3      4      5
17   2      3      4     12
18   2      5      4     12
19   3      4      5      6
20   5      4      5     13
21   5      4      5     14
22   4      6      5     13
23   4      6      5     14
24   6     13      5     14
25   3      1      6      5
26   4      5      6     15
27   4      5      6     16
28   5      1      6     15
29   5      1      6     16
30   6     15      6     16

Dihedrals

 1   1      6      1      2      3
 2   2      6      1      2      8
 3   2      6      1      2      9
 4   3      7      1      2      3
 5   4      7      1      2      8
 6   4      7      1      2      9
 7   1      2      1      6      5
 8   2      2      1      6     15
 9   2      2      1      6     16
10   3      7      1      6      5
11   4      7      1      6     15
12   4      7      1      6     16
13   5      1      2      3      4
14   6      1      2      3     10
15   6      1      2      3     11
16   6      4      3      2      8
17   7      8      2      3     10
18   7      8      2      3     11
19   6      4      3      2      9
20   7      9      2      3     10
21   7      9      2      3     11
22   1      5      4      3      2
23   3     12      4      3      2
24   2      5      4      3     10
25   4     12      4      3     10
26   2      5      4      3     11
27   4     12      4      3     11
28   1      3      4      5      6
29   2      3      4      5     13
30   2      3      4      5     14
31   3     12      4      5      6
32   4     12      4      5     13
33   4     12      4      5     14
34   5      4      5      6      1
35   6      4      5      6     15
36   6      4      5      6     16
37   6      1      6      5     13
38   7     13      5      6     15
39   7     13      5      6     16
40   6      1      6      5     14
41   7     14      5      6     15
42   7     14      5      6     16

Impropers

 1   1      2      1      6      7
 2   1      3      4      5     12

Following is the PIP.txt:

PIP molecule.

16 atoms
16 bonds
30 angles
42 dihedrals
2 impropers

Coords

1 -2.474156782 1.268292122 0.330146493
2 -1.778245099 0.031909754 -0.186352597
3 -0.303136828 0.050902422 0.255088784
4 0.373974982 1.278718503 -0.304920390
5 -0.321884506 2.515264494 0.211388608
6 -1.797068954 2.496065671 -0.229961299
7 -3.537413097 1.254597474 0.011740002
8 -2.289242491 -0.895777808 0.235323721
9 -1.833705760 0.012439858 -1.324812564
10 0.222066675 -0.883201907 -0.133705889
11 -0.247432421 0.072379544 1.393487555
12 1.437204622 1.292451665 0.013544842
13 0.188030819 3.443447890 -0.210585219
14 -0.266153624 2.534910192 1.349840338
15 -1.852606463 2.474325256 -1.368375189
16 -2.322227579 3.430170544 0.158878506

Types

1 1
2 2
3 2
4 1
5 2
6 2
7 3
8 4
9 4
10 4
11 4
12 3
13 4
14 4
15 4
16 4

Charges

1 0.000000
2 0.000000
3 0.000000
4 0.000000
5 0.000000
6 0.000000
7 0.000000
8 0.000000
9 0.000000
10 0.000000
11 0.000000
12 0.000000
13 0.000000
14 0.000000
15 0.000000
16 0.000000

Bonds

 1   1      1      2
 2   1      1      6
 3   2      1      7
 4   3      2      3
 5   4      2      8
 6   4      2      9
 7   1      4      3
 8   4      3     10
 9   4      3     11
10   1      4      5
11   2      4     12
12   3      5      6
13   4      5     13
14   4      5     14
15   4      6     15
16   4      6     16

Angles

 1   1      2      1      6
 2   2      2      1      7
 3   2      6      1      7
 4   3      1      2      3
 5   4      3      2      8
 6   4      3      2      9
 7   5      1      2      8
 8   5      1      2      9
 9   6      8      2      9
10   3      4      3      2
11   4      2      3     10
12   4      2      3     11
13   5      4      3     10
14   5      4      3     11
15   6     10      3     11
16   1      3      4      5
17   2      3      4     12
18   2      5      4     12
19   3      4      5      6
20   5      4      5     13
21   5      4      5     14
22   4      6      5     13
23   4      6      5     14
24   6     13      5     14
25   3      1      6      5
26   4      5      6     15
27   4      5      6     16
28   5      1      6     15
29   5      1      6     16
30   6     15      6     16

Dihedrals

 1   1      6      1      2      3
 2   2      6      1      2      8
 3   2      6      1      2      9
 4   3      7      1      2      3
 5   4      7      1      2      8
 6   4      7      1      2      9
 7   1      2      1      6      5
 8   2      2      1      6     15
 9   2      2      1      6     16
10   3      7      1      6      5
11   4      7      1      6     15
12   4      7      1      6     16
13   5      1      2      3      4
14   6      1      2      3     10
15   6      1      2      3     11
16   6      4      3      2      8
17   7      8      2      3     10
18   7      8      2      3     11
19   6      4      3      2      9
20   7      9      2      3     10
21   7      9      2      3     11
22   1      5      4      3      2
23   3     12      4      3      2
24   2      5      4      3     10
25   4     12      4      3     10
26   2      5      4      3     11
27   4     12      4      3     11
28   1      3      4      5      6
29   2      3      4      5     13
30   2      3      4      5     14
31   3     12      4      5      6
32   4     12      4      5     13
33   4     12      4      5     14
34   5      4      5      6      1
35   6      4      5      6     15
36   6      4      5      6     16
37   6      1      6      5     13
38   7     13      5      6     15
39   7     13      5      6     16
40   6      1      6      5     14
41   7     14      5      6     15
42   7     14      5      6     16

Impropers

 1   1      2      1      6      7
 2   1      3      4      5     12

simongravelle · October 19, 2023, 2:24pm

You need to specify your LAMMPS version, there have been some recent changes concerning the use of the “extra” keywords.

cara · October 19, 2023, 3:11pm

3 Aug 2022

akohlmey · October 19, 2023, 3:27pm

Which means that you have to also set the “extra/special/per/atom” option to a larger value.
You can either pick a value that is definitely too large (like 50) and allocate some unused memory, or just set up a short test input where you use “read_data” instead of create_box and create_atoms. In the output of that run, you will fine the “optimal” (= minimal) values for all the extra settings.

However, there is more trouble ahead: the atom type of the create_atoms command should be 0 instead of 4 or else you will get an overflow of type numbers (for molecules the type number is added to the types in the molecule file), and also the “random” placement without the “overlap” option will likely create overlapping molecules and thus problems with the initial structure having very high potential energy. Alternatives are using read_data and then the replicate command to create a system without overlaps or using the lattice points instead of random placement.

We always encourage people to upgrade to the latest version, which is currently 2 Aug 2023 Update 1, so they have all the latest bug fixes and updates.

cara · October 19, 2023, 4:26pm

In fact, I want to add a special amount of PIP molecules as well as a special amount of water molecules to simulate the diffusion of PIP in water. As for water molecules, I’v already succeeded to add into the system through random command. I wonder if I use read_data command and then replicate it (PIP) along axis, whether such system is too regular. I have no idea how to add these two types of molecules reasonably to the system.

akohlmey · October 19, 2023, 4:37pm

In that case, you first need to increase the number of atom types in the create_box command to also accommodate the atom types for the water molecule (typically by 2).

You could manually edit the data file for your PIP molecule to also include some water molecules (placed around the PIP molecule or next to it) so you get the desired ratio and then you already have a homogeneous distribution of the two types of molecules. Of course, you will still have to equilibrate the system and “break” some of the regularity. That is usually not too difficult if you a) start with a minimization, b) use sufficiently large box dimensions so there is plenty space between the molecules, c) run equilbration at an elevated temperature (e.g. 500-700K), a reduced timestep (to avoid instabilities), and fix deform to compress the system to the desired density. After that you can run at the elevated temperature until the system is suitable well mixed, then cool down, check for equilbration again and finally run with fix npt (if needed) for a bit relax the pressure.

For random placement, you need to use the overlap keyword or use some methodology to “unoverlap” the molecules (e.g. temporarily use the “soft” pair style and use fix adapt to start with no repulsion between atoms and then gradually raise that repulsion until all molecules are apart. See the micelle folder under examples for a demo of that method). After that you can resort the original pair style and then run a minimization and then equilibrate similar to what I suggested above. Neither of the two starting conditions is perfect: in one your system is too ordered, in the other too disordered, so you need a suitable amount of equilbration in either case.

cara · October 20, 2023, 1:40am

I’v set the “extra/special/per/atom” value to 100 and finally removed the error “Molecule auto special bond generation overflow.”
In this system, I indeed observed overlapping molecules, and I wonder whether such overlapping does not occur if I use fix pour command.

akohlmey · October 20, 2023, 2:49am

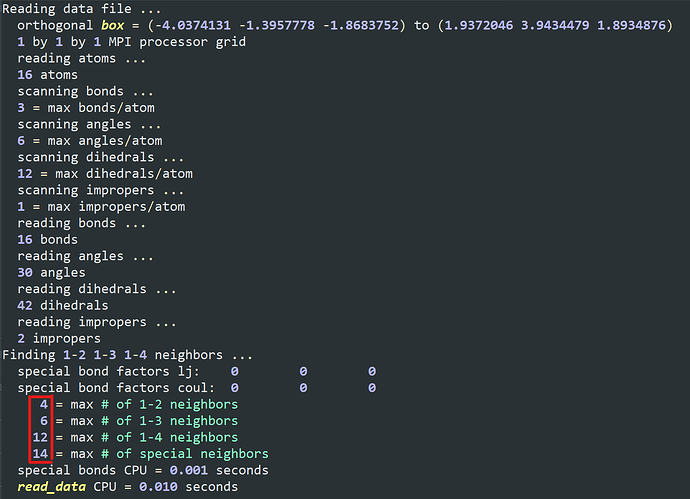

I have no problem reading either your data file or using your molecule file with the current development version of LAMMPS. Using the data file produces:

Reading data file ...
  orthogonal box = (-4.0374131 -1.3957778 -1.8683752) to (1.9372046 3.9434479 1.8934876)
  1 by 1 by 1 MPI processor grid
  reading atoms ...
  16 atoms
  scanning bonds ...
  3 = max bonds/atom
  scanning angles ...
  6 = max angles/atom
  scanning dihedrals ...
  12 = max dihedrals/atom
  scanning impropers ...
  1 = max impropers/atom
  reading bonds ...
  16 bonds
  reading angles ...
  30 angles
  reading dihedrals ...
  42 dihedrals
  reading impropers ...
  2 impropers
Finding 1-2 1-3 1-4 neighbors ...
  special bond factors lj:    0        0        0
  special bond factors coul:  0        0        0
     4 = max # of 1-2 neighbors
     6 = max # of 1-3 neighbors
    12 = max # of 1-4 neighbors
    14 = max # of special neighbors
  special bonds CPU = 0.000 seconds
  read_data CPU = 0.002 seconds

and thus the following settings added to create_box should suffice:

extra/bond/per/atom 3 extra/angle/per/atom 6 extra/dihedral/per/atom 12 extra/improper/per/atom 1 extra/special/per/atom 14

No. It is syntactically correct.

However, both your data file and your molecule file have all charges set to zero. That is highly suspicious. I would have expected non-zero (partial) charges for that kind of compound. So there is possibly a problem with the files you have handed to msi2lmp, but the setting of charges has no impact on your problem loading the molecule file.

Have you upgraded LAMMPS?

Also, you don’t seem to be following all of my advice and try out the different approaches and considering all my explanations in combination with the information of the documentation.

At this point, I have nothing more to add and nothing more to suggest beyond what I already did. All you should need to know is in my messages and the LAMMPS manual.

cara · October 20, 2023, 3:21am

I’m sorry. I still don’t understand the way to get the value of “extra/…/per/atom.” How did you make it? In addition, as for upgradation, I am downloading the latest version of the installation package and I will update LAMMPS as soon as possible.

akohlmey · October 20, 2023, 3:25am

I have explained it twice. … and I have advised you multiple times to read up the detail in the LAMMPS manual. If you are unable to follow my advice and suggestions, then I do not know how else to help you and you have to hope for someone else to step in and try to explain things in a way you you can follow.

cara · October 20, 2023, 5:26am

Thank you for your advice. I’ll read up more details in the manual.
And I set up a short test through read_data command, so do the values outlined in red square below refer to the optimal extra settings?

srtee · October 20, 2023, 9:54am

Since you have a short test set up (which is very good practice! Well done), if nothing else, you should be able to find out “by brute force” what the correct settings should be. Simply try different numbers and see what runs. (Start big – which should definitely work – and then make the numbers smaller until it stops working, at which point you might be able to work out for yourself what the rules are.)

cara · October 20, 2023, 12:13pm

Thanks a lot!
