Potential Energy and Total Energy conservation in NVT

LAMMPS LAMMPS General Discussion
1

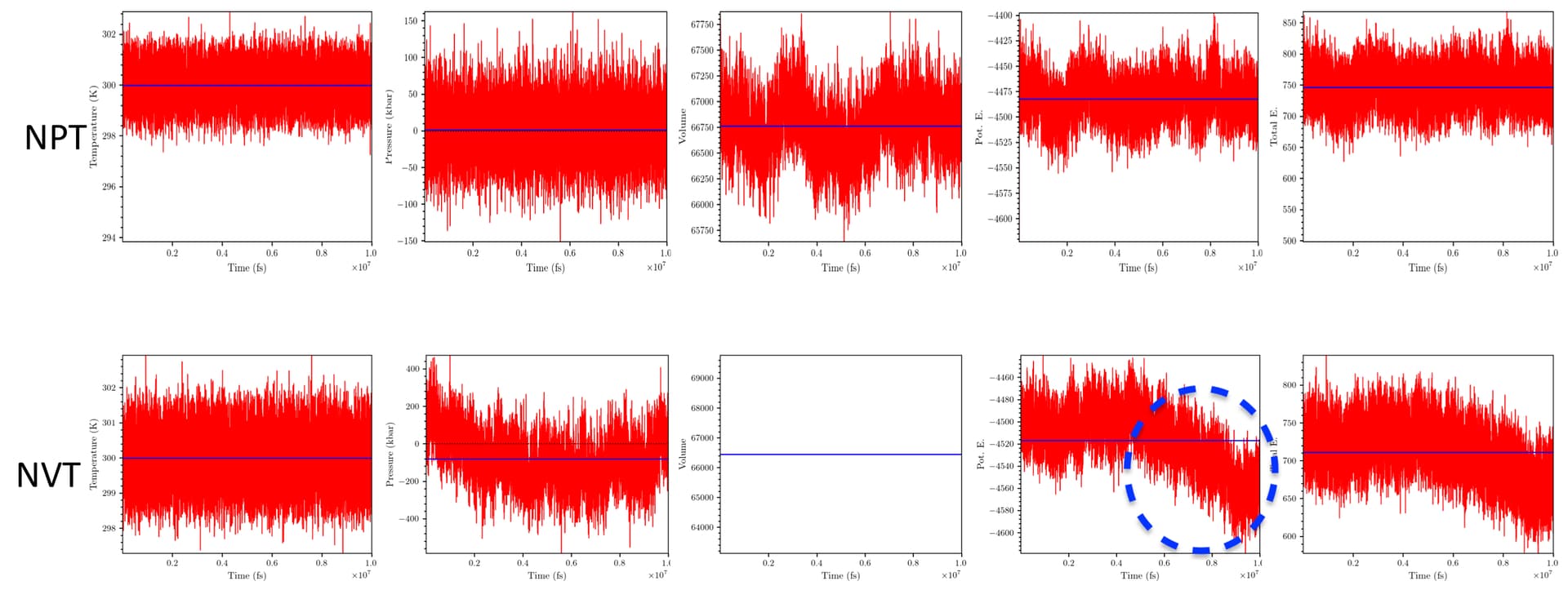

Hello, I am trying to equilibrate a system containing around 6000 atoms (a fluorinated polymer + lithium salt) using LAMMPS (23 Jun 2022 - Update 4)/Linux with OPLS-aa force-field. The OPLS parameters were obtained from LigParGen server. The full simulation includes (1) energy minimisation, (2) NVT equilibration for 1 ns, (3) NPT equilibration for 10 ns and box rescalling and (4) MD run (NVT) for 10 ns. The time step is 1fs. At the end of step 3 (NPT) the average pressure is 1 KBar, and the PE and Total E fluctuates around a mean value. However in the last NVT step, the PE and Total E starts decreasing after 5 ns (figure attached).

result
result1920×723 140 KB

Also the average pressure drops substantially from 1 KBar to -80 KBar.
The input is as follows. Can someone suggest, what might be the reason? or if something is terribly wrong with the input? Thank you!

# created by fftool
units real
dimension 3
boundary p p p

atom_style full
bond_style harmonic
angle_style harmonic
dihedral_style opls

special_bonds lj/coul 0.0 0.0 0.5

# remove hybrid if not necessary
pair_style hybrid lj/cut/coul/long 12.0 12.0
pair_modify mix geometric tail yes
kspace_style pppm 1.0e-6

read_data data.lmp

# remove pair style if not using hybrid
pair_coeff    1    1 lj/cut/coul/long     0.018279     2.126000  # Li Li
pair_coeff    2    2 lj/cut/coul/long     0.117789     3.500000  # Cl1 Cl1
pair_coeff    3    3 lj/cut/coul/long     0.210000     2.900000  # O02 O02
pair_coeff    4    4 lj/cut/coul/long     0.210000     2.900000  # O03 O03
pair_coeff    5    5 lj/cut/coul/long     0.210000     2.900000  # O04 O04
pair_coeff    6    6 lj/cut/coul/long     0.210000     2.900000  # O05 O05
pair_coeff    7    7 lj/cut/coul/long     0.060000     2.900000  # F00 F00
pair_coeff    8    8 lj/cut/coul/long     0.065999     3.500000  # C01 C01
pair_coeff    9    9 lj/cut/coul/long     0.065999     3.500000  # C02 C02
pair_coeff   10   10 lj/cut/coul/long     0.065999     3.500000  # C03 C03
pair_coeff   11   11 lj/cut/coul/long     0.060000     2.900000  # F04 F04
pair_coeff   12   12 lj/cut/coul/long     0.065999     3.500000  # C05 C05
pair_coeff   13   13 lj/cut/coul/long     0.030000     2.500000  # H06 H06
pair_coeff   14   14 lj/cut/coul/long     0.030000     2.500000  # H07 H07
pair_coeff   15   15 lj/cut/coul/long     0.065999     3.500000  # C08 C08
pair_coeff   16   16 lj/cut/coul/long     0.060000     2.900000  # F09 F09
pair_coeff   17   17 lj/cut/coul/long     0.060000     2.900000  # F0A F0A
pair_coeff   18   18 lj/cut/coul/long     0.065999     3.500000  # C0B C0B
pair_coeff   19   19 lj/cut/coul/long     0.030000     2.500000  # H0C H0C
pair_coeff   20   20 lj/cut/coul/long     0.030000     2.500000  # H0D H0D
pair_coeff   21   21 lj/cut/coul/long     0.065999     3.500000  # C0E C0E
pair_coeff   22   22 lj/cut/coul/long     0.060000     2.900000  # F0F F0F
pair_coeff   23   23 lj/cut/coul/long     0.060000     2.900000  # F0G F0G
pair_coeff   24   24 lj/cut/coul/long     0.065999     3.500000  # C0H C0H
pair_coeff   25   25 lj/cut/coul/long     0.030000     2.500000  # H0I H0I
pair_coeff   26   26 lj/cut/coul/long     0.030000     2.500000  # H0J H0J
pair_coeff   27   27 lj/cut/coul/long     0.065999     3.500000  # C0K C0K
pair_coeff   28   28 lj/cut/coul/long     0.060000     2.900000  # F0M F0M
pair_coeff   29   29 lj/cut/coul/long     0.060000     2.900000  # F0N F0N
pair_coeff   30   30 lj/cut/coul/long     0.065999     3.500000  # C0O C0O
pair_coeff   31   31 lj/cut/coul/long     0.030000     2.500000  # H0P H0P
pair_coeff   32   32 lj/cut/coul/long     0.030000     2.500000  # H0Q H0Q
pair_coeff   33   33 lj/cut/coul/long     0.065999     3.500000  # C0R C0R
pair_coeff   34   34 lj/cut/coul/long     0.060000     2.900000  # F0S F0S
pair_coeff   35   35 lj/cut/coul/long     0.060000     2.900000  # F0T F0T
pair_coeff   36   36 lj/cut/coul/long     0.065999     3.500000  # C0U C0U
pair_coeff   37   37 lj/cut/coul/long     0.030000     2.500000  # H0V H0V
pair_coeff   38   38 lj/cut/coul/long     0.030000     2.500000  # H0W H0W
pair_coeff   39   39 lj/cut/coul/long     0.065999     3.500000  # C0X C0X
pair_coeff   40   40 lj/cut/coul/long     0.060000     2.900000  # F0Y F0Y
pair_coeff   41   41 lj/cut/coul/long     0.060000     2.900000  # F0Z F0Z
pair_coeff   42   42 lj/cut/coul/long     0.065999     3.500000  # C10 C10
pair_coeff   43   43 lj/cut/coul/long     0.030000     2.500000  # H11 H11
pair_coeff   44   44 lj/cut/coul/long     0.030000     2.500000  # H12 H12
pair_coeff   45   45 lj/cut/coul/long     0.065999     3.500000  # C13 C13
pair_coeff   46   46 lj/cut/coul/long     0.060000     2.900000  # F14 F14
pair_coeff   47   47 lj/cut/coul/long     0.060000     2.900000  # F15 F15
pair_coeff   48   48 lj/cut/coul/long     0.030000     2.500000  # H16 H16
pair_coeff   49   49 lj/cut/coul/long     0.030000     2.500000  # H17 H17
pair_coeff   50   50 lj/cut/coul/long     0.030000     2.500000  # H18 H18
pair_coeff   51   51 lj/cut/coul/long     0.065999     3.500000  # C19 C19
pair_coeff   52   52 lj/cut/coul/long     0.030000     2.500000  # H1A H1A
pair_coeff   53   53 lj/cut/coul/long     0.030000     2.500000  # H1B H1B
pair_coeff   54   54 lj/cut/coul/long     0.065999     3.500000  # C1C C1C
pair_coeff   55   55 lj/cut/coul/long     0.060000     2.900000  # F1D F1D
pair_coeff   56   56 lj/cut/coul/long     0.060000     2.900000  # F1E F1E
pair_coeff   57   57 lj/cut/coul/long     0.065999     3.500000  # C1F C1F
pair_coeff   58   58 lj/cut/coul/long     0.030000     2.500000  # H1G H1G
pair_coeff   59   59 lj/cut/coul/long     0.030000     2.500000  # H1H H1H
pair_coeff   60   60 lj/cut/coul/long     0.065999     3.500000  # C1I C1I
pair_coeff   61   61 lj/cut/coul/long     0.060000     2.900000  # F1J F1J
pair_coeff   62   62 lj/cut/coul/long     0.060000     2.900000  # F1K F1K
pair_coeff   63   63 lj/cut/coul/long     0.065999     3.500000  # C1M C1M
pair_coeff   64   64 lj/cut/coul/long     0.030000     2.500000  # H1N H1N
pair_coeff   65   65 lj/cut/coul/long     0.030000     2.500000  # H1O H1O
pair_coeff   66   66 lj/cut/coul/long     0.065999     3.500000  # C1P C1P
pair_coeff   67   67 lj/cut/coul/long     0.060000     2.900000  # F1Q F1Q
pair_coeff   68   68 lj/cut/coul/long     0.060000     2.900000  # F1R F1R
pair_coeff   69   69 lj/cut/coul/long     0.065999     3.500000  # C1S C1S
pair_coeff   70   70 lj/cut/coul/long     0.030000     2.500000  # H1T H1T
pair_coeff   71   71 lj/cut/coul/long     0.030000     2.500000  # H1U H1U
pair_coeff   72   72 lj/cut/coul/long     0.065999     3.500000  # C1V C1V
pair_coeff   73   73 lj/cut/coul/long     0.060000     2.900000  # F1W F1W
pair_coeff   74   74 lj/cut/coul/long     0.060000     2.900000  # F1X F1X
pair_coeff   75   75 lj/cut/coul/long     0.065999     3.500000  # C1Y C1Y
pair_coeff   76   76 lj/cut/coul/long     0.030000     2.500000  # H1Z H1Z
pair_coeff   77   77 lj/cut/coul/long     0.030000     2.500000  # H20 H20
pair_coeff   78   78 lj/cut/coul/long     0.065999     3.500000  # C21 C21
pair_coeff   79   79 lj/cut/coul/long     0.060000     2.900000  # F22 F22
pair_coeff   80   80 lj/cut/coul/long     0.060000     2.900000  # F23 F23
pair_coeff   81   81 lj/cut/coul/long     0.065999     3.500000  # C24 C24
pair_coeff   82   82 lj/cut/coul/long     0.030000     2.500000  # H25 H25
pair_coeff   83   83 lj/cut/coul/long     0.030000     2.500000  # H26 H26
pair_coeff   84   84 lj/cut/coul/long     0.065999     3.500000  # C27 C27
pair_coeff   85   85 lj/cut/coul/long     0.060000     2.900000  # F28 F28
pair_coeff   86   86 lj/cut/coul/long     0.060000     2.900000  # F29 F29
pair_coeff   87   87 lj/cut/coul/long     0.065999     3.500000  # C2A C2A
pair_coeff   88   88 lj/cut/coul/long     0.030000     2.500000  # H2B H2B
pair_coeff   89   89 lj/cut/coul/long     0.030000     2.500000  # H2C H2C
pair_coeff   90   90 lj/cut/coul/long     0.065999     3.500000  # C2D C2D
pair_coeff   91   91 lj/cut/coul/long     0.060000     2.900000  # F2E F2E
pair_coeff   92   92 lj/cut/coul/long     0.060000     2.900000  # F2F F2F
pair_coeff   93   93 lj/cut/coul/long     0.065999     3.500000  # C2G C2G
pair_coeff   94   94 lj/cut/coul/long     0.030000     2.500000  # H2H H2H
pair_coeff   95   95 lj/cut/coul/long     0.030000     2.500000  # H2I H2I
pair_coeff   96   96 lj/cut/coul/long     0.065999     3.500000  # C2J C2J
pair_coeff   97   97 lj/cut/coul/long     0.060000     2.900000  # F2K F2K
pair_coeff   98   98 lj/cut/coul/long     0.060000     2.900000  # F2M F2M
pair_coeff   99   99 lj/cut/coul/long     0.065999     3.500000  # C2N C2N
pair_coeff  100  100 lj/cut/coul/long     0.060000     2.900000  # F2O F2O
pair_coeff  101  101 lj/cut/coul/long     0.060000     2.900000  # F2P F2P
pair_coeff  102  102 lj/cut/coul/long     0.065999     3.500000  # C2Q C2Q
pair_coeff  103  103 lj/cut/coul/long     0.060000     2.900000  # F2R F2R
pair_coeff  104  104 lj/cut/coul/long     0.030000     2.500000  # H2S H2S
pair_coeff  105  105 lj/cut/coul/long     0.060000     2.900000  # F2T F2T
pair_coeff  106  106 lj/cut/coul/long     0.060000     2.900000  # F2U F2U
pair_coeff  107  107 lj/cut/coul/long     0.060000     2.900000  # F2V F2V


variable        prenpt_nsteps equal 1e6
variable        npt_nsteps    equal 1e7
variable        md_nsteps     equal 1e7
variable        ndump         equal ${md_nsteps}/200
variable        Vol           equal vol
variable        tot_ene       equal c_kin_ene+c_pot_ene

# Compute
compute         temper  all temp
compute         press   all pressure temper
compute         pot_ene all pe
compute         kin_ene all ke

thermo          100
thermo_style    custom step time temp press vol density pe ke v_tot_ene ecoul epair ebond eangle edihed

# Optimize cell
fix        1    all box/relax iso 0.0 vmax 0.001
min_style       cg
minimize        1.0e-12 1.0e-12 200000 200000

unfix 1
reset_timestep  0
print ">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> pre-npt starts <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<"
neighbor        2.0 bin
neigh_modify    delay 0 every 1 check yes
timestep        1
velocity        all create 300 12345
thermo          1000
thermo_style    custom step time temp press vol density pe ke v_tot_ene ecoul epair ebond eangle edihed

fix   shake1    all shake 0.000001 20 0 b 10 11 13 14 19 20 25 26 31 32 37 38 43 44 48 49 50 55 56 61 62 67 68 73 74 79 80 85 86 91 92 101
fix   1stnvt    all nvt temp 300 300 100 # Nose-Hoover
fix   1stave    all ave/time 1 1000 1000 c_temper c_press v_Vol c_pot_ene c_kin_ene v_tot_ene file firstnvt.dat

run   ${prenpt_nsteps} # 1.0 ns

unfix 1stave
unfix 1stnvt
unfix shake1
print ">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> pre-npt ends <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<"
reset_timestep  0
print ">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> npt starts <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<"
fix   2ndave    all ave/time 1 1000 1000 c_temper c_press v_Vol c_pot_ene c_kin_ene v_tot_ene file secondnpt.dat
fix   2ndnpt    all npt temp 300 300 100 iso 1 1  1000
fix   2ndvol    all ave/time 1 1000 1000 v_Vol ave one
variable        mean_Vol equal f_2ndvol

dump  myDump    all custom ${ndump} npt.lammpstrj id type x y z vx vy vz fx fy fz element
dump_modify     myDump sort id
dump_modify     myDump element Li Cl O O O O F C C C F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F H H H C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C F F C F H F F F

run   ${npt_nsteps} # 10 ns
print           "Average volume after NPT = ${mean_Vol}"
print           "Last volume after NPT = ${Vol}"
# Calculate the scaling factors for each dimension
variable        scaleX equal (v_mean_Vol/v_Vol)^(1.0/3.0)
variable        scaleY equal (v_mean_Vol/v_Vol)^(1.0/3.0)
variable        scaleZ equal (v_mean_Vol/v_Vol)^(1.0/3.0)

print           "scaleX = ${scaleX}"
print           "scaleY = ${scaleY}"
print           "scaleZ = ${scaleZ}"

# Apply the scaling to fix the volume
change_box  all x scale ${scaleX} y scale ${scaleY} z scale ${scaleZ}  remap
print           "New volume value after change_box = ${Vol}"
undump myDump
unfix  2ndvol
unfix  2ndnpt
unfix  2ndave
print ">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> npt ends <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<"
reset_timestep  0
print ">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> MD starts <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<"
thermo          1000
thermo_style    custom step time temp press vol density pe ke v_tot_ene ecoul epair ebond eangle edihed

fix  lastmd     all ave/time 1 1000 1000  c_temper c_press v_Vol c_pot_ene c_kin_ene v_tot_ene  file md.dat
fix  lastnvt    all nvt temp 300 300 100 # Nose-Hoover

dump  myDump    all custom ${ndump} md_run.lammpstrj id type x y z vx vy vz fx fy fz element
dump_modify     myDump sort id
dump_modify     myDump element Li Cl O O O O F C C C F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F H H H C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C H H C F F C F F C F H F F F

run   ${md_nsteps} # 10 ns

undump myDump
unfix  lastnvt
unfix  lastmd

write_restart restartnvt.lmp
write_data data.nvt.lmp
print ">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> MD ends <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<"
2

This isn’t really a LAMMPS issue bit rather a science issue. Have you discussed this with your adviser or tutor or colleagues? Have you visualized your simulation trajectory to see what is happening when the potential energy drops? Have you considered that your system may have been in a metastable state with significant barrier heights on the potential hypersurface or that lower energy states are hard to access and is now relaxing into a lower energy state?

Don’t expect that there is one “magic” keyword or setting that will make the system behave the way you want it. Unless there is a gross mistake in your input deck, that is not likely, and the fact that you have been able to simulate sizable chunks already make that very unlikely. The logic is always the inverse when doing research. It is your job to try and understand what is happening and then draw conclusion from it. No forum will help you with that let alone do your job.

3

Thank you for your response.

I have not asked for a ‘magical’ trick or a specific ‘keyword’ to make the system behave the way I want. I asked for a suggestion.

thank you for these suggestions.

4

Look carefully at the volume – it clearly shows nanosecond-timescale fluctuations. That means it’s plenty likely to not yet be equilibrated after 10ns of NPT.

1 Like
