The VMD pic does not make sense regarding my data file

nema9210 · May 8, 2023, 10:19pm

Hello All.

LAMMPS (23 Jun 2022)

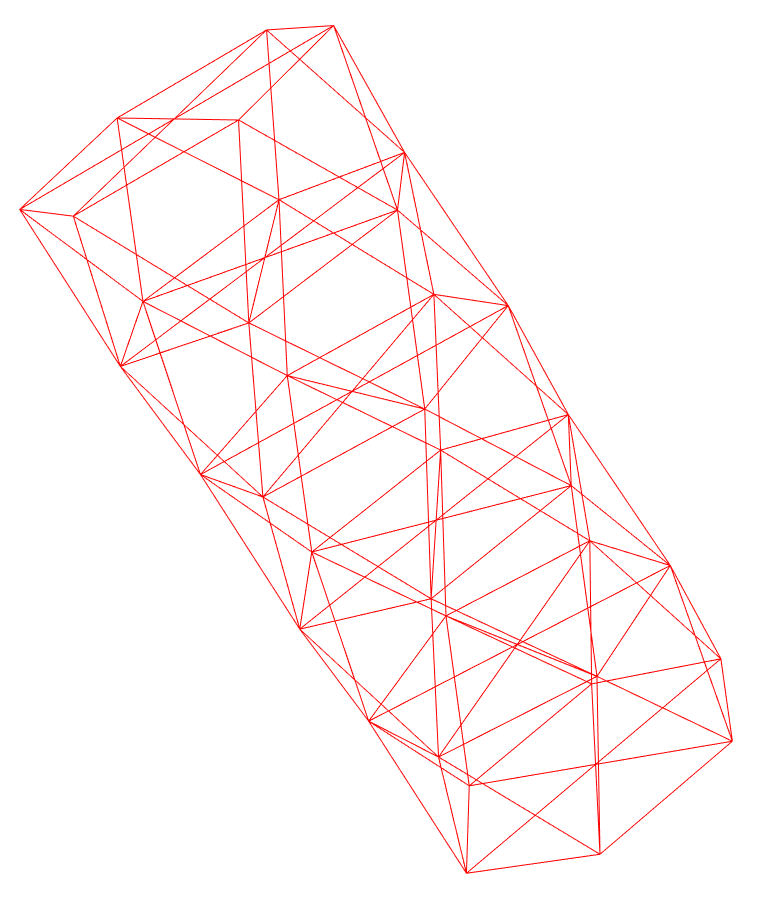

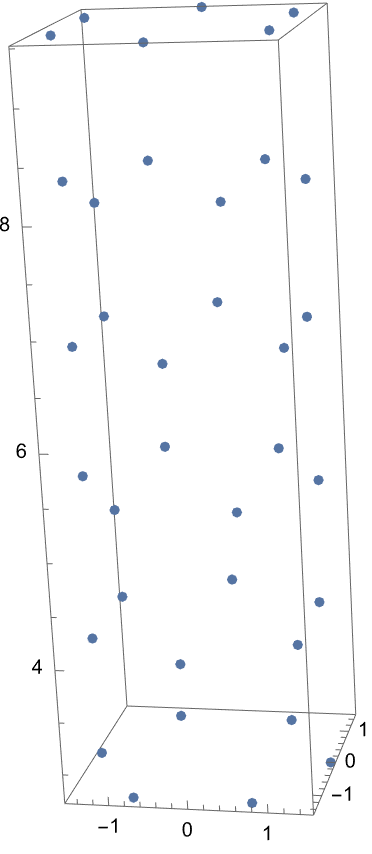

I am trying to model a CNT with triangulare lattice. Using mathematica I created the CNT’s atom positions, angles and bond information. Here is picture of it from mathematica:

Here is the data file:

LAMMPS data file via Mathematica

36 atoms
114 bonds
180 angles
0 dihedrals
0 impropers
1 atom types
1 bond types
1 angle types
0 dihedral types
0 improper types

Masses

1 12

PairIJ Coeffs # edpd

1 1 10.75 4.5 0.41 1.58 1.42 2. 1.58

Bond Coeffs # harmonic

1 469 1.4

Angle Coeffs # harmonic

1 400. 90.

Atoms # hybrid

1 1 0.38 0 -4.3 1. 10. 0 0
2 1 0.19 0.32 -4.3 1. 10. 0 0
3 1 -0.19 0.32 -4.3 1. 10. 0 0
4 1 -0.38 0 -4.3 1. 10. 0 0
5 1 -0.19 -0.32 -4.3 1. 10. 0 0
6 1 0.19 -0.32 -4.3 1. 10. 0 0
7 1 0.32 0.19 -4. 1. 10. 0 0
8 1 0 0.38 -4. 1. 10. 0 0
9 1 -0.32 0.19 -4. 1. 10. 0 0
10 1 -0.32 -0.19 -4. 1. 10. 0 0
11 1 0 -0.38 -4. 1. 10. 0 0
12 1 0.32 -0.19 -4. 1. 10. 0 0
13 1 0.38 0 -3.6 1. 10. 0 0
14 1 0.19 0.32 -3.6 1. 10. 0 0
15 1 -0.19 0.32 -3.6 1. 10. 0 0
16 1 -0.38 0 -3.6 1. 10. 0 0
17 1 -0.19 -0.32 -3.6 1. 10. 0 0
18 1 0.19 -0.32 -3.6 1. 10. 0 0
19 1 0.32 0.19 -3.3 1. 10. 0 0
20 1 0 0.38 -3.3 1. 10. 0 0
21 1 -0.32 0.19 -3.3 1. 10. 0 0
22 1 -0.32 -0.19 -3.3 1. 10. 0 0
23 1 0 -0.38 -3.3 1. 10. 0 0
24 1 0.32 -0.19 -3.3 1. 10. 0 0
25 1 0.38 0 -3. 1. 10. 0 0
26 1 0.19 0.32 -3. 1. 10. 0 0
27 1 -0.19 0.32 -3. 1. 10. 0 0
28 1 -0.38 0 -3. 1. 10. 0 0
29 1 -0.19 -0.32 -3. 1. 10. 0 0
30 1 0.19 -0.32 -3. 1. 10. 0 0
31 1 0.32 0.19 -2.6 1. 10. 0 0
32 1 0 0.38 -2.6 1. 10. 0 0
33 1 -0.32 0.19 -2.6 1. 10. 0 0
34 1 -0.32 -0.19 -2.6 1. 10. 0 0
35 1 0 -0.38 -2.6 1. 10. 0 0
36 1 0.32 -0.19 -2.6 1. 10. 0 0

Bonds # harmonic

1 1 1 2
2 1 1 6
3 1 1 7
4 1 1 12
5 1 2 3
6 1 2 7
7 1 2 8
8 1 3 4
9 1 3 8
10 1 3 9
11 1 4 5
12 1 4 9
13 1 4 10
14 1 5 6
15 1 5 10
16 1 5 11
17 1 6 11
18 1 6 12
19 1 7 8
20 1 7 12
21 1 7 13
22 1 7 14
23 1 8 9
24 1 8 14
25 1 8 15
26 1 9 10
27 1 9 15
28 1 9 16
29 1 10 11
30 1 10 16
31 1 10 17
32 1 11 12
33 1 11 17
34 1 11 18
35 1 12 13
36 1 12 18
37 1 13 14
38 1 13 18
39 1 13 19
40 1 13 24
41 1 14 15
42 1 14 19
43 1 14 20
44 1 15 16
45 1 15 20
46 1 15 21
47 1 16 17
48 1 16 21
49 1 16 22
50 1 17 18
51 1 17 22
52 1 17 23
53 1 18 23
54 1 18 24
55 1 19 20
56 1 19 24
57 1 19 25
58 1 19 26
59 1 20 21
60 1 20 26
61 1 20 27
62 1 21 22
63 1 21 27
64 1 21 28
65 1 22 23
66 1 22 28
67 1 22 29
68 1 23 24
69 1 23 29
70 1 23 30
71 1 24 25
72 1 24 30
73 1 25 26
74 1 25 30
75 1 25 31
76 1 25 36
77 1 26 27
78 1 26 31
79 1 26 32
80 1 27 28
81 1 27 32
82 1 27 33
83 1 28 29
84 1 28 33
85 1 28 34
86 1 29 30
87 1 29 34
88 1 29 35
89 1 30 35
90 1 30 36
91 1 31 32
92 1 31 36
93 1 32 33
94 1 33 34
95 1 34 35
96 1 35 36
97 1 1 4
98 1 2 5
99 1 3 6
100 1 7 10
101 1 8 11
102 1 9 12
103 1 13 16
104 1 14 17
105 1 15 18
106 1 19 22
107 1 20 23
108 1 21 24
109 1 25 28
110 1 26 29
111 1 27 30
112 1 31 34
113 1 32 35
114 1 33 36

Angles

1 1 2 1 7
2 1 6 1 12
3 1 7 1 12
4 1 1 2 7
5 1 3 2 8
6 1 7 2 8
7 1 2 3 8
8 1 4 3 9
9 1 8 3 9
10 1 3 4 9
11 1 5 4 10
12 1 9 4 10
13 1 4 5 10
14 1 6 5 11
15 1 10 5 11
16 1 1 6 12
17 1 5 6 11
18 1 11 6 12
19 1 1 7 2
20 1 1 7 12
21 1 2 7 8
22 1 8 7 14
23 1 12 7 13
24 1 13 7 14
25 1 2 8 3
26 1 2 8 7
27 1 3 8 9
28 1 7 8 14
29 1 9 8 15
30 1 14 8 15
31 1 3 9 4
32 1 3 9 8
33 1 4 9 10
34 1 8 9 15
35 1 10 9 16
36 1 15 9 16
37 1 4 10 5
38 1 4 10 9
39 1 5 10 11
40 1 9 10 16
41 1 11 10 17
42 1 16 10 17
43 1 5 11 6
44 1 5 11 10
45 1 6 11 12
46 1 10 11 17
47 1 12 11 18
48 1 17 11 18
49 1 1 12 6
50 1 1 12 7
51 1 6 12 11
52 1 7 12 13
53 1 11 12 18
54 1 13 12 18
55 1 7 13 12
56 1 7 13 14
57 1 12 13 18
58 1 14 13 19
59 1 18 13 24
60 1 19 13 24
61 1 7 14 8
62 1 7 14 13
63 1 8 14 15
64 1 13 14 19
65 1 15 14 20
66 1 19 14 20
67 1 8 15 9
68 1 8 15 14
69 1 9 15 16
70 1 14 15 20
71 1 16 15 21
72 1 20 15 21
73 1 9 16 10
74 1 9 16 15
75 1 10 16 17
76 1 15 16 21
77 1 17 16 22
78 1 21 16 22
79 1 10 17 11
80 1 10 17 16
81 1 11 17 18
82 1 16 17 22
83 1 18 17 23
84 1 22 17 23
85 1 11 18 12
86 1 11 18 17
87 1 12 18 13
88 1 13 18 24
89 1 17 18 23
90 1 23 18 24
91 1 13 19 14
92 1 13 19 24
93 1 14 19 20
94 1 20 19 26
95 1 24 19 25
96 1 25 19 26
97 1 14 20 15
98 1 14 20 19
99 1 15 20 21
100 1 19 20 26
101 1 21 20 27
102 1 26 20 27
103 1 15 21 16
104 1 15 21 20
105 1 16 21 22
106 1 20 21 27
107 1 22 21 28
108 1 27 21 28
109 1 16 22 17
110 1 16 22 21
111 1 17 22 23
112 1 21 22 28
113 1 23 22 29
114 1 28 22 29
115 1 17 23 18
116 1 17 23 22
117 1 18 23 24
118 1 22 23 29
119 1 24 23 30
120 1 29 23 30
121 1 13 24 18
122 1 13 24 19
123 1 18 24 23
124 1 19 24 25
125 1 23 24 30
126 1 25 24 30
127 1 19 25 24
128 1 19 25 26
129 1 24 25 30
130 1 26 25 31
131 1 30 25 36
132 1 31 25 36
133 1 19 26 20
134 1 19 26 25
135 1 20 26 27
136 1 25 26 31
137 1 27 26 32
138 1 31 26 32
139 1 20 27 21
140 1 20 27 26
141 1 21 27 28
142 1 26 27 32
143 1 28 27 33
144 1 32 27 33
145 1 21 28 22
146 1 21 28 27
147 1 22 28 29
148 1 27 28 33
149 1 29 28 34
150 1 33 28 34
151 1 22 29 23
152 1 22 29 28
153 1 23 29 30
154 1 28 29 34
155 1 30 29 35
156 1 34 29 35
157 1 23 30 24
158 1 23 30 29
159 1 24 30 25
160 1 25 30 36
161 1 29 30 35
162 1 35 30 36
163 1 25 31 26
164 1 25 31 36
165 1 26 31 32
166 1 26 32 27
167 1 26 32 31
168 1 27 32 33
169 1 27 33 28
170 1 27 33 32
171 1 28 33 34
172 1 28 34 29
173 1 28 34 33
174 1 29 34 35
175 1 29 35 30
176 1 29 35 34
177 1 30 35 36
178 1 25 36 30
179 1 25 36 31
180 1 30 36 35

And here is my input file:

units lj
dimension 3
boundary p p p
neighbor 0.2 bin
neigh_modify every 1 delay 0 check yes
neigh_modify one 1500

atom_style hybrid edpd full
bond_style harmonic
angle_style harmonic

pair_style edpd 1.58 9872598

read_data cntallshort.dat

region edpd block -20 20 -20 20 -20 20 units box

#grouping

group CNT type 1

mass 1 12

set atom * edpd/temp 1.0
set atom * edpd/cv 1.0E5

pair_coeff 1 1 15.0 4.5 0.41 1.58 1.41E-5 2.0 1.58 #carbon-carbon (C-C)

compute mythermo all temp
thermo 100
thermo_modify temp mythermo
thermo_modify flush yes

comm_modify vel yes cutoff 5

#fix rigid CNT rigid molecule

velocity all create 1.0 432982 loop local dist gaussian

timestep 0.01

run 500
reset_timestep 0

compute temp all edpd/temp/atom
compute ccT all chunk/atom bin/1d y 0.0 1.0
fix stat all ave/chunk 1 500 500 ccT c_temp density/number norm sample file temp.profile

dump mydmp all atom 10 cnt.lammpstrj

#minimize 1.0e-4 1.0e-6 100 1000

run 500

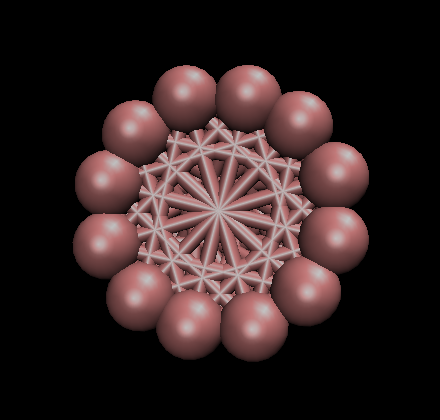

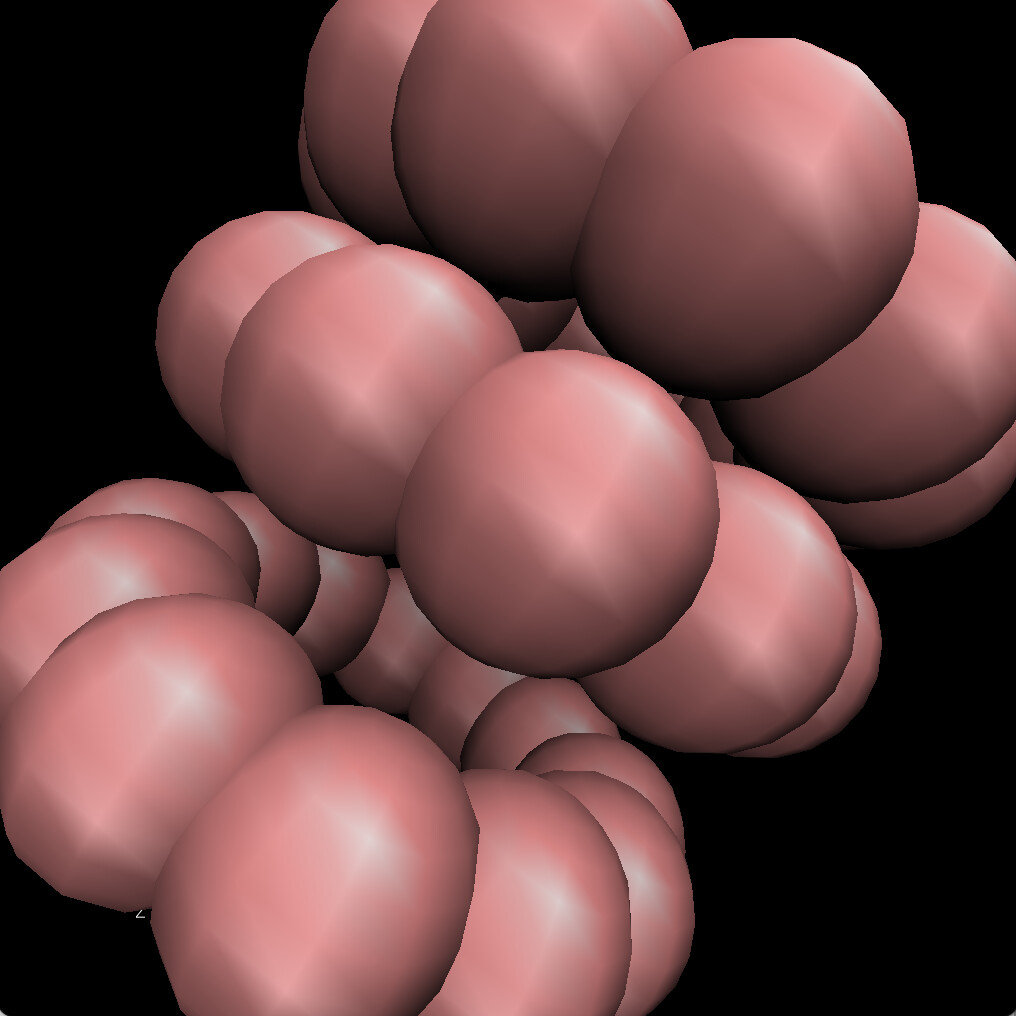

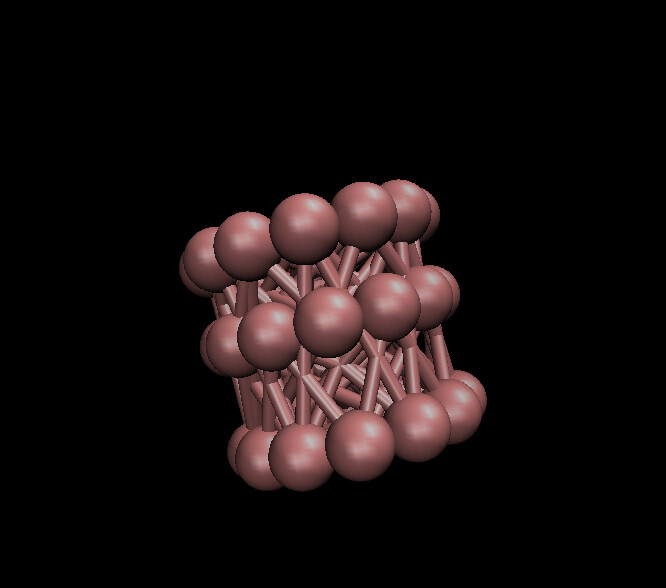

The CNT I get after running my code looks like:

and I am getting these warning messages which even though I read through the previous question people had , I have a hard time understanding how to fix them. Could you please help me with this?

WARNING: Inconsistent image flags (src/domain.cpp:819)
WARNING: Bond/angle/dihedral extent > half of periodic box length (src/domain.cpp:940)
Per MPI rank memory allocation (min/avg/max) = 34.64 | 34.64 | 34.64 Mbytes
Step Temp E_pair E_mol TotEng Press
0 1 268.81913 2076.5914 2346.8689 26063.561
100 1 268.81913 2076.5914 2346.8689 25212.867
200 1 268.81913 2076.5914 2346.8689 26729.651
300 1 268.81913 2076.5914 2346.8689 26359.631
400 1 268.81913 2076.5914 2346.8689 24243.61
500 1 268.81913 2076.5914 2346.8689 26871.991

akohlmey · May 8, 2023, 11:29pm

There are no box dimensions given in your data file, which means that LAMMPS will assume a 1x1x1 units box and wrap all positions around, since you have periodic boundaries.

If I would change the periodicity to f f f, all atoms would be outside the box.

the warnings and unusually high pressure are a consequence of the “squeezed and wrapped” system.

If you load just the dump file into a program like VMD, the bonds show are likely bogus. VMD knows nothing about reduced units, assumes “real” units and creates bonds based on a distance heuristic, which is bogus, too, since there are no elements from which it can infer a meaningful covalent distance.

srtee · May 9, 2023, 12:03am

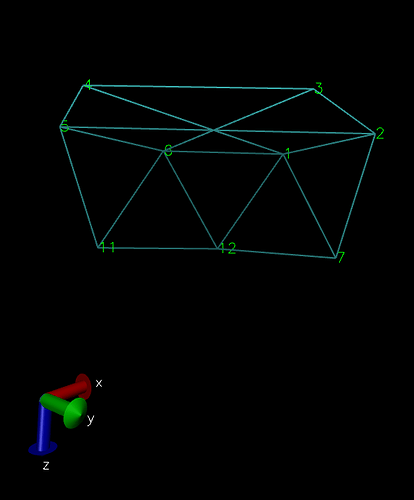

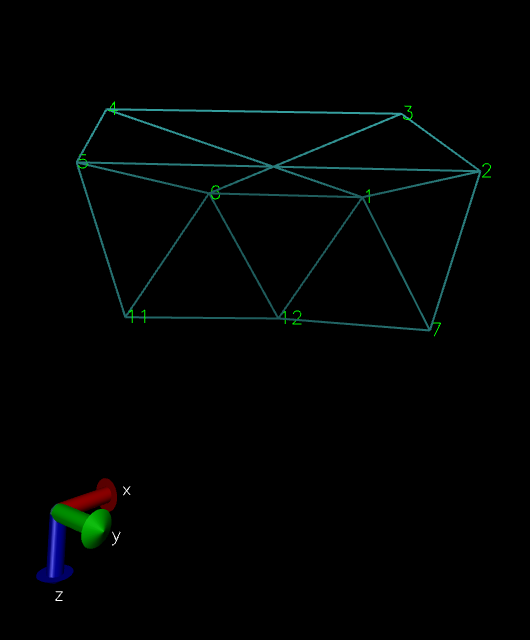

Your bond and angle specifications are completely inconsistent with your beginning topology:

You have bonds from 1 to 2, 6, 7, and 12, which have the same initial length, but then also 1-4 which is twice the length of the previous four bonds, and yet all bonds are specified to have the same equilibrium length. You also have angles 2-1-7, 6-1-12, and 7-1-12, none of which have an initial angle of 90 degrees, and yet your single angle interaction is specified to have an equilibrium angle of 90 degrees.

You need advice from a local mentor or supervisor as to how you can successfully initialize a carbon nanotube configuration with the correct initial bonds and angles, even before planning on how you will run your simulation.

nema9210 · May 9, 2023, 4:05am

Thanks a lot for your explanation. I understand what you mentioned about angles. But I have a question about bonds equilibrium length. I have cross bonds which suppose to have appr twice the length of other bonds in the triangular lattice. My question is where in the input I need to specify the equilibrium length? and from which part of the input file you noticed that they all have the same equilibrium length?

nema9210 · May 9, 2023, 4:08am

Thanks a lot. My mistake was that I thought since I defined the region box in input file there is no need to define the box again in the data file. thanks.

srtee · May 9, 2023, 9:22am

Since your data file’s bond coefficients section only has one bond type, there is only one type of bond which has only one equilibrium length.

Do you have a local mentor or supervisor to teach you how to use LAMMPS? Or, failing that, do you have at least some publications which have previously simulated CNTs using similar methods? There is a lot that is strange in your simulation. The two big question marks to me are (1) using a soft potential for your particles, when CNTs are known to be very rigid on the nanoscale and certainly not self-crossing; (2) setting a mass of 12 in a system with only one kind of particle and yet using “units lj”, when setting everything to mass 1 would allow you to avoid a world of unit conversions and potential mistakes.

I know I probably sound a bit mean, but eventually you will have to convince someone that your simulation methods are physically reasonable and that your results are scientifically useful – whether it’s your supervisor, a thesis examiner, a referee, or (most importantly) someone who’s thinking about using your work to model something else and would like to cite you. It’s better for you to work out now if your model is reasonable – rather than find out many computer-days or -months later that some simple mistake has left you with unusable data.

I’ve just spent an entire afternoon looking through seven different papers simulating gold-water interfaces – each of which give different parameters for their simulations, and sometimes even completely different functional forms – so this is work that anyone who does molecular dynamics has to do. Even after almost eight years doing simulations I still have to justify why I’m doing what I do, and I still change my mind after running some simulations and decide to use a different potential (earlier is better, rather than later). I hope you will find someone who can help you learn, and I hope you will find a methodology that really does give useful information about CNTs.

nema9210 · May 9, 2023, 2:18pm

Dear Dr.Shern,

Thank you for your explanation. We are cunstructing our own structure of CNT, because we need to use coarse graning DPDe model, and in the end we want our CNT to be flexible not rigid. I am reproducing the CNT in Dr.Jaime work

I have a question about mass. In all DPDe and DPD packages m=1 (in formulas). but different materials (atoms) have different masses. Although mass=1 in formulas but I can specify mass in the my input. and LAMMPS (DPDe) actually some how has the mass included although it is not in the formulas . What is the logic behind it? (I need to eventually add water and proteins to my simulation so I thought I should consider real masses). could you please help me understand that?

I am new to LAMMPS and MD, so I am trying to figure out how things work. I am reading papers and asking here or emailing authors. For example now I learned from you, and I appreciate it that you take the time to respond to me. I wish we could be in contact more and I could discuss my problems.

Thanks again.

nema9210 · May 9, 2023, 3:17pm

@srtee @akohlmey
Thanks for answering my questions.
I have a question regarding bonds. If all my bonds are harmonic how do I specify different equilibrium length for two different bond length ? Do I do that by defining 2 bond types?

srtee · May 9, 2023, 6:19pm

Yes! See, you’re getting it

Often polymer models were developed for “pure theory” simulations where only one type of bead was needed. Then it makes sense to “set everything to 1” and put physical mass and length sizes back into the simulation results at the end. But in the study you are trying to do there are different beads because the authors have a physical system with different chemical groups, so you will have to put the masses in as you go along. Please make sure you are comfortable converting back and forth between “LJ” and “real” units if you’ll keep going down this path.

nema9210 · May 9, 2023, 7:25pm

Makes sense. Thank you so much.
