Unformed structures of molecules with large number of water molecules

LAMMPS LAMMPS Beginners
, ,
1

Dear All,

I have a question about my system, which includes protein molecules, water, and a carbon nanotube (CNT). When I run the script with a small number of molecules as a test, the molecular structures all seem to look fine:

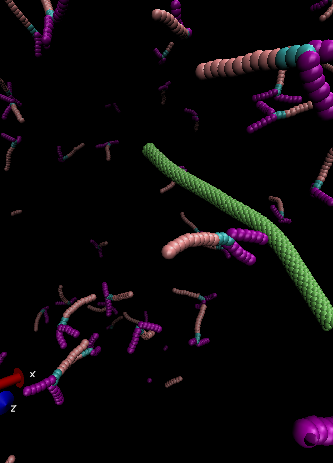

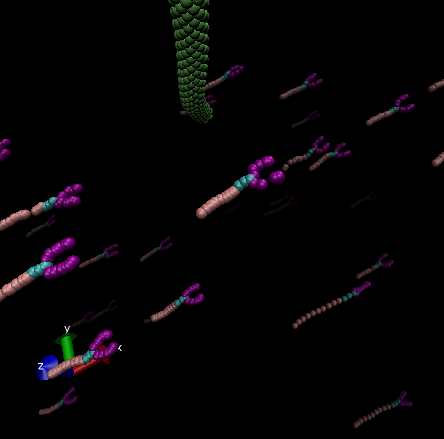

However, when I include the correct number of water molecules (~3,000,000), it seems that their structure deforms in an unexpected or incorrect way. Since generating that many water beads takes a long time, I created them in a separate LAMMPS run and saved them as a data file. In my current input script, I read in that data file and then use the delete_atoms command to remove any overlapping water molecules.


I thought it might be helpful to share the following information—I’m getting some image flag warnings along with a few others. In case these messages provide any clues, I wanted to include them here for your insight.

LAMMPS (2 Aug 2023)
OMP_NUM_THREADS environment is not set. Defaulting to 1 thread. (src/comm.cpp:98)
using 1 OpenMP thread(s) per MPI task
Reading data file …
orthogonal box = (-50 -50 -50) to (50 50 70)
2 by 2 by 5 MPI processor grid
reading atoms …
640 atoms
reading velocities …
640 velocities
scanning bonds …
5 = max bonds/atom
scanning angles …
10 = max angles/atom
reading bonds …
2224 bonds
reading angles …
6288 angles
Finding 1-2 1-3 1-4 neighbors …
special bond factors lj: 0 0 0
special bond factors coul: 0 0 0
7 = max # of 1-2 neighbors
42 = max # of 1-3 neighbors
294 = max # of 1-4 neighbors
47 = max # of special neighbors
special bonds CPU = 0.007 seconds
read_data CPU = 0.041 seconds
Reading data file …
orthogonal box = (-50 -50 -50) to (50 50 70)
2 by 2 by 5 MPI processor grid
reading atoms …
1250 atoms
scanning bonds …
2 = max bonds/atom
scanning angles …
3 = max angles/atom
reading bonds …
1200 bonds
reading angles …
1200 angles
Finding 1-2 1-3 1-4 neighbors …
special bond factors lj: 0 0 0
special bond factors coul: 0 0 0
7 = max # of 1-2 neighbors
42 = max # of 1-3 neighbors
294 = max # of 1-4 neighbors
47 = max # of special neighbors
special bonds CPU = 0.006 seconds
read_data CPU = 0.015 seconds
Reading data file …
orthogonal box = (-50 -50 -50) to (50 50 70)
2 by 2 by 5 MPI processor grid
reading atoms …
3598110 atoms
reading velocities …
3598110 velocities
Finding 1-2 1-3 1-4 neighbors …
special bond factors lj: 0 0 0
special bond factors coul: 0 0 0
7 = max # of 1-2 neighbors
42 = max # of 1-3 neighbors
294 = max # of 1-4 neighbors
47 = max # of special neighbors
special bonds CPU = 0.104 seconds
read_data CPU = 25.464 seconds
3598110 atoms in group liquid
640 atoms in group CNT
500 atoms in group PEG
600 atoms in group DSPEt
150 atoms in group DSPEH
1140 atoms in group CNTPEG
750 atoms in group DSPE
1890 atoms in group DCP
1250 atoms in group DSPEG
System init for delete_atoms …
Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info …
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 3.58
ghost atom cutoff = 6
binsize = 1.79, bins = 56 56 68
2 neighbor lists, perpetual/occasional/extra = 1 1 0
(1) command delete_atoms, occasional
attributes: full, newton on
pair build: full/bin
stencil: full/bin/3d
bin: standard
(2) pair edpd, perpetual
attributes: half, newton on
pair build: half/bin/newton
stencil: half/bin/3d
bin: standard
WARNING: Ignoring ‘compress yes’ for molecular system (src/delete_atoms.cpp:140)
Deleted 1915 atoms, new total = 3598085
System init for delete_atoms …
Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info …
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 3.58
ghost atom cutoff = 6
binsize = 1.79, bins = 56 56 68
2 neighbor lists, perpetual/occasional/extra = 1 1 0
(1) command delete_atoms, occasional
attributes: full, newton on
pair build: full/bin
stencil: full/bin/3d
bin: standard
(2) pair edpd, perpetual
attributes: half, newton on
pair build: half/bin/newton
stencil: half/bin/3d
bin: standard
WARNING: Ignoring ‘compress yes’ for molecular system (src/delete_atoms.cpp:140)
Deleted 6599 atoms, new total = 3591486
System init for delete_atoms …
Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info …
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 3.58
ghost atom cutoff = 6
binsize = 1.79, bins = 56 56 68
2 neighbor lists, perpetual/occasional/extra = 1 1 0
(1) command delete_atoms, occasional
attributes: full, newton on
pair build: full/bin
stencil: full/bin/3d
bin: standard
(2) pair edpd, perpetual
attributes: half, newton on
pair build: half/bin/newton
stencil: half/bin/3d
bin: standard
WARNING: Ignoring ‘compress yes’ for molecular system (src/delete_atoms.cpp:140)
Deleted 4308 atoms, new total = 3587178
3586538 atoms in group nonrigid
1 rigid bodies with 640 atoms

CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE

Your simulation uses code contributions which should be cited:

  • pair edpd command: doi:10.1016/j.jcp.2014.02.003
    The log file lists these citations in BibTeX format.

CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE

Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info …
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 2.58
ghost atom cutoff = 6
binsize = 1.29, bins = 78 78 94
1 neighbor lists, perpetual/occasional/extra = 1 0 0
(1) pair edpd, perpetual
attributes: half, newton on
pair build: half/bin/newton
stencil: half/bin/3d
bin: standard
Setting up Verlet run …
Unit style : lj
Current step : 0
Time step : 0.005
WARNING: Inconsistent image flags (src/domain.cpp:815)
Per MPI rank memory allocation (min/avg/max) = 497.3 | 498 | 498.9 Mbytes
Step Temp E_pair E_mol TotEng Press
0 1.0004646 42.063095 0.0068759588 43.5704 146.98242
1000 1.0038585 41.898826 0.013351094 43.417696 146

I’d really appreciate it if you could share your thoughts based on your experience. Do you think the issue might just be due to incorrect image flags? If so, could you please advise me on how to fix them? Or do you suspect there might be other potential causes I should look into?

my simulation got killed :
78
3000 1.0031866 41.896949 0.013396446 43.414857 146.36105
4000 1.0031595 41.896872 0.013524909 43.414868 146.16797
ERROR on proc 3: Bond atoms 1595 1596 missing on proc 3 at step 4190 (src/ntopo_bond_all.cpp:59)
Last command: run 10000000

MPI_ABORT was invoked on rank 3 in communicator MPI_COMM_WORLD
Proc: [[65140,1],3]
Errorcode: 1

NOTE: invoking MPI_ABORT causes Open MPI to kill all MPI processes.
You may or may not see output from other processes, depending on
exactly when Open MPI kills them.

Here is the logfile:

"  LAMMPS (2 Aug 2023)
OMP_NUM_THREADS environment is not set. Defaulting to 1 thread. (src/comm.cpp:98)
using 1 OpenMP thread(s) per MPI task
units           lj
dimension       3
timestep 0.005
boundary        p p p
neighbor        2 bin
neigh_modify    every 1 delay 0 check yes
comm_modify vel yes
comm_modify cutoff 6.0


atom_style      hybrid edpd full
bond_style      harmonic
angle_style     harmonic
pair_style      edpd 1.58 9872598


region mybox block -50 50 -50 50 -50 70 units box

read_data       equi.data
Reading data file ...
orthogonal box = (-50 -50 -50) to (50 50 70)
2 by 2 by 5 MPI processor grid
reading atoms ...
640 atoms
reading velocities ...
640 velocities
scanning bonds ...
5 = max bonds/atom
scanning angles ...
10 = max angles/atom
reading bonds ...
2224 bonds
reading angles ...
6288 angles
Finding 1-2 1-3 1-4 neighbors ...
special bond factors lj:    0        0        0
special bond factors coul:  0        0        0
   7 = max # of 1-2 neighbors
  42 = max # of 1-3 neighbors
 294 = max # of 1-4 neighbors
  47 = max # of special neighbors
special bonds CPU = 0.008 seconds
read_data CPU = 0.044 seconds
read_data       DSPEpeg_full1.data add append
Reading data file ...
orthogonal box = (-50 -50 -50) to (50 50 70)
2 by 2 by 5 MPI processor grid
reading atoms ...
1250 atoms
scanning bonds ...
2 = max bonds/atom
scanning angles ...
3 = max angles/atom
reading bonds ...
1200 bonds
reading angles ...
1200 angles
Finding 1-2 1-3 1-4 neighbors ...
special bond factors lj:    0        0        0
special bond factors coul:  0        0        0
   7 = max # of 1-2 neighbors
  42 = max # of 1-3 neighbors
 294 = max # of 1-4 neighbors
  47 = max # of special neighbors
special bonds CPU = 0.006 seconds
read_data CPU = 0.015 seconds
read_data       waterbeads.data add append
Reading data file ...
orthogonal box = (-50 -50 -50) to (50 50 70)
2 by 2 by 5 MPI processor grid
reading atoms ...
3598110 atoms
reading velocities ...
3598110 velocities
Finding 1-2 1-3 1-4 neighbors ...
special bond factors lj:    0        0        0
special bond factors coul:  0        0        0
   7 = max # of 1-2 neighbors
  42 = max # of 1-3 neighbors
 294 = max # of 1-4 neighbors
  47 = max # of special neighbors
special bonds CPU = 0.111 seconds
read_data CPU = 25.633 seconds

#fix recenter all recenter INIT INIT INIT units box

# create water beads (type 2)

#print ">>> Creating water"
#create_atoms 2 random 3598110 13487 NULL overlap 0.4 maxtry 500
#create_atoms 2 random 35 13487 NULL overlap 0.4 maxtry 500
#print ">>> Water created"

# group the newly created water beads
group liquid type 2
3598110 atoms in group liquid

# GROUPING
group CNT       type 1
640 atoms in group CNT
group PEG       type 3
500 atoms in group PEG
group DSPEt     type 4
600 atoms in group DSPEt
group DSPEH     type 5
150 atoms in group DSPEH
group CNTPEG    union CNT PEG
1140 atoms in group CNTPEG
group DSPE      union DSPEt DSPEH
750 atoms in group DSPE
group DCP  union DSPE CNTPEG
1890 atoms in group DCP
group DSPEG  union DSPE PEG
1250 atoms in group DSPEG

# pair, bond & angle coeff
include         parmcnt.lammps
pair_coeff   1 1 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #(C-C)
pair_coeff   2 2 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    # (W-W)
pair_coeff   1 2 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    # (C-W)



bond_coeff  1	value	value
bond_coeff  2	value	value



angle_coeff  1	  value	value
angle_coeff  2	  value	value
angle_coeff  3	  value	value


mass                1 value      #5 Carbon atoms per bead
mass                2 value        #3 water molecule per bead

include         parmPEG.lammps
pair_coeff    3 3 value    4.5   0.41 1.58 1.41E-5 2.0 1.58    #PEG-PEG
pair_coeff    3 1 value   4.5   0.41 1.58 1.41E-5 2.0 1.58    #PEG-CARBON
pair_coeff    3 2 value      4.5   0.41 1.58 1.41E-5 2.0 1.58    #PEG-Water.


bond_coeff  3	 150   0.75
angle_coeff  4	 30	180



mass                3   0.815      # 1 PEG monomer per bead (reduced mass of PEG= mass of PEG monomer/ mass of 3 water molecules)

include         parmDSPE.lammps
pair_coeff    4 4 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEt-DSPEt
pair_coeff    5 5 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEH-DSPEH
pair_coeff    4 5 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEH-DSPEt
pair_coeff    4 1 value    4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEt-CARBON
pair_coeff    5 1 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEH-CARBON
pair_coeff    4 2 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEt-Water
pair_coeff    5 2 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEH-Water
pair_coeff    4 3 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEt-PEG
pair_coeff    5 3 value     4.5   0.41 1.58 1.41E-5 2.0 1.58    #DSPEH-PEG


bond_coeff   4	 value   value
bond_coeff   5	 value   value
bond_coeff   6	 value   value

angle_coeff  5	 value	value
angle_coeff  6	 value	value
angle_coeff  7	 value	value   #used to be 150
angle_coeff  8	 value	value
angle_coeff  9	value	value
angle_coeff  10  value     value




mass                4   0.815
mass                5   0.815



# remove water beads that overlap with CNT, DSPE, or PEG
delete_atoms overlap 1.0 liquid CNT
System init for delete_atoms ...
Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info ...
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 3.58
ghost atom cutoff = 6
binsize = 1.79, bins = 56 56 68
2 neighbor lists, perpetual/occasional/extra = 1 1 0
(1) command delete_atoms, occasional
    attributes: full, newton on
    pair build: full/bin
    stencil: full/bin/3d
    bin: standard
(2) pair edpd, perpetual
    attributes: half, newton on
    pair build: half/bin/newton
    stencil: half/bin/3d
    bin: standard
WARNING: Ignoring 'compress yes' for molecular system (src/delete_atoms.cpp:140)
Deleted 1915 atoms, new total = 3598085
delete_atoms overlap 1.0 liquid DSPE
System init for delete_atoms ...
Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info ...
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 3.58
ghost atom cutoff = 6
binsize = 1.79, bins = 56 56 68
2 neighbor lists, perpetual/occasional/extra = 1 1 0
(1) command delete_atoms, occasional
    attributes: full, newton on
    pair build: full/bin
    stencil: full/bin/3d
    bin: standard
(2) pair edpd, perpetual
    attributes: half, newton on
    pair build: half/bin/newton
    stencil: half/bin/3d
    bin: standard
WARNING: Ignoring 'compress yes' for molecular system (src/delete_atoms.cpp:140)
Deleted 6561 atoms, new total = 3591524
delete_atoms overlap 1.0 liquid PEG
System init for delete_atoms ...
Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info ...
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 3.58
ghost atom cutoff = 6
binsize = 1.79, bins = 56 56 68
2 neighbor lists, perpetual/occasional/extra = 1 1 0
(1) command delete_atoms, occasional
    attributes: full, newton on
    pair build: full/bin
    stencil: full/bin/3d
    bin: standard
(2) pair edpd, perpetual
    attributes: half, newton on
    pair build: half/bin/newton
    stencil: half/bin/3d
    bin: standard
WARNING: Ignoring 'compress yes' for molecular system (src/delete_atoms.cpp:140)
Deleted 4146 atoms, new total = 3587378




# THERMOSTATS FOR CNT AND LIQUID GROUPS
compute         tliquid liquid temp
compute         tCNT CNT temp
compute         tDSPE DSPE temp
compute         tPEG PEG temp
compute         tDSPEG DSPEG temp


group nonrigid subtract all CNT
3586738 atoms in group nonrigid
fix mynve nonrigid nve
fix rigidCNT CNT rigid single
1 rigid bodies with 640 atoms


#fix             mynve all nve

#fix rigidCNT CNT rigid single

neighbor 1 bin
neigh_modify delay 0 every 1 check yes


comm_modify mode single cutoff 6.0 vel yes



fix             mylang1 liquid langevin 1 1 10 8786
fix_modify      mylang1 temp tliquid

#fix             mylang2 CNT langevin 2 2 10 7768
#fix_modify      mylang2 temp tCNT

fix             mylang3 DSPEG langevin 1 1 10 7730
fix_modify      mylang3 temp tDSPEG

fix tetherCNT CNT spring/self 50.0
velocity CNT set 0.0 0.0 0.0

# EQUILIBRATE WITH THERMOSTATS
run             1000

CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE

Your simulation uses code contributions which should be cited:

- pair edpd command: doi:10.1016/j.jcp.2014.02.003

@Article{ZLi2014_JCP,
author = {Li, Z. and Tang, Y.-H. and Lei, H. and Caswell, B. and Karniadakis, G. E.},
title = {Energy-Conserving Dissipative Particle Dynamics with Temperature-Dependent Properties},
journal = {Journal of Computational Physics},
year =    {2014},
volume =  {265},
pages =   {113--127}
}

@Article{ZLi2015_CC,
author = {Li, Z. and Tang, Y.-H. and Li, X. and Karniadakis, G. E.},
title = {Mesoscale Modeling of Phase Transition Dynamics of Thermoresponsive Polymers},
journal = {Chemical Communications},
year =    {2015},
volume =  {51},
pages =   {11038--11040}
}

CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE-CITE

Generated 0 of 10 mixed pair_coeff terms from geometric mixing rule
Neighbor list info ...
update: every = 1 steps, delay = 0 steps, check = yes
max neighbors/atom: 2000, page size: 100000
master list distance cutoff = 2.58
ghost atom cutoff = 6
binsize = 1.29, bins = 78 78 94
1 neighbor lists, perpetual/occasional/extra = 1 0 0
(1) pair edpd, perpetual
    attributes: half, newton on
    pair build: half/bin/newton
    stencil: half/bin/3d
    bin: standard
WARNING: Inconsistent image flags (src/domain.cpp:815)
Per MPI rank memory allocation (min/avg/max) = 497 | 498 | 498.9 Mbytes
 Step          Temp          E_pair         E_mol          TotEng         Press
       0   1.0004067      42.063971      0.0068755708   43.571189      146.99341
    1000   1.0024538      41.901957      0.014429364    43.419799      146.33634
Loop time of 1097.78 on 20 procs for 1000 steps with 3587378 atoms... "

`````````````````````
2

Please include log output and script snippets in “code formatting blocks” – that is, if you surround code with three backticks before and after

```
like this
```

then we will be able to read it correctly.

Additionally the log section here doesn’t tell us how you have invoked the delete_atoms command so we are missing even more context. Please provide your script file.

3

@srtee Dear Dr. tee
I have attached the log file (just removed the paircoeff values as I have not published yet :). )

4

The pair coefficient parameters may be one possible reason for the error. The choice of timestep another. The following (newly added) documentation page has more detailed discussions on errors in LAMMPS that are not simple syntax errors:

https://docs.lammps.org/Errors_details.html

1 Like
5

Dear Dr. Kohlmeyer,

Thank you for your response and for sharing the helpful link — I will take a closer look at it.

I wanted to follow up with some additional observations. I tested the same setup using a smaller number of water beads, and in that case, the routine seems to work well — the molecular structures remain stable, which made me think my coefficients might be okay. However, when I scale up to the full number of water beads, the simulation breaks, and I receive the following warning:

WARNING: Inconsistent image flags (src/domain.cpp:815)

When I visualize the system in VMD, I notice that some molecules appear to leave the box and re-enter, which led me to suspect that incorrect image flags might be contributing to the instability in the larger system. I’m unsure how to properly resolve this.

Another point I’m uncertain about is whether I’m handling the equilibration correctly after adding the water beads. Do you think I should run an energy minimization step (minimize) after reading in the water? Or would you recommend another approach to help stabilize the system before running dynamics?

As an additional test, I saved the working system (SWCNT + molecules + a small number of water beads) using write_data, then read that file and added more water beads through my routine. Once again, it only runs properly with a small number of added beads. When I use a pre-generated file with a large number of water beads, the simulation crashes with the same image flag warning and eventually reports:

ERROR on proc 3: Bond atoms 1595 1596 missing on proc 3 at step 4190

I would really appreciate any suggestions you might have regarding either the image flag issue or proper equilibration steps after introducing water beads.

Best regards,
Delaram Nematollahi

6

That is a premature conclusion. Smaller systems suppress larger fluctuations and contain fewer particles, so both reduced statistics and the lack of low frequency phonons with larger amplitudes can make it much less probable that particles get too close and then “explode”.

That is not the reason. It may be more likely due to the way how you assemble your system. This kind of error is also discussed in the page I referred you to.

You are asking me questions that are not about LAMMPS but about doing your research and are topics for discussions with your adviser and/or tutor and/or collaborator. I am neither, I have not knowledge of your research and no vested interest in your research or time to take on advising others on a voluntary basis. It is off-topic for this forum, too. See the forum guidelines.

7

Yes, it makes sense that the statistics is different and that was not a good judgment to rely on the test simulation for the proof of correct coefficients. I could fix the issue using the information from the link you have provided. I used the fix adaptive all dt/reset to authomatically adjust the time step, and this prevented it from crashing. If you have any other thoughts I would appreciate it, otherwise thanks again for providing the help with LAMMPS.
