LAMMPS interlocked ring molecules

[Yang_Wang1]

Dear all,
I am simulating the stretch of interlocked ring molecules, and I used the bead-spring FENE model with LJ units. But the rings easily cross each other when I stretch two ends of the chain. Are there any suggestions about this? I don’t think it is normal, so how to prevent the ring crossing in the bead-spring model simulation?

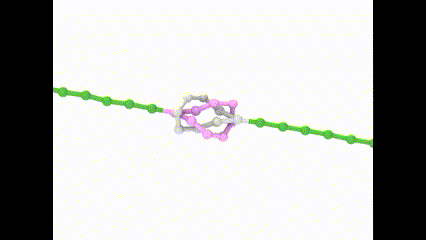

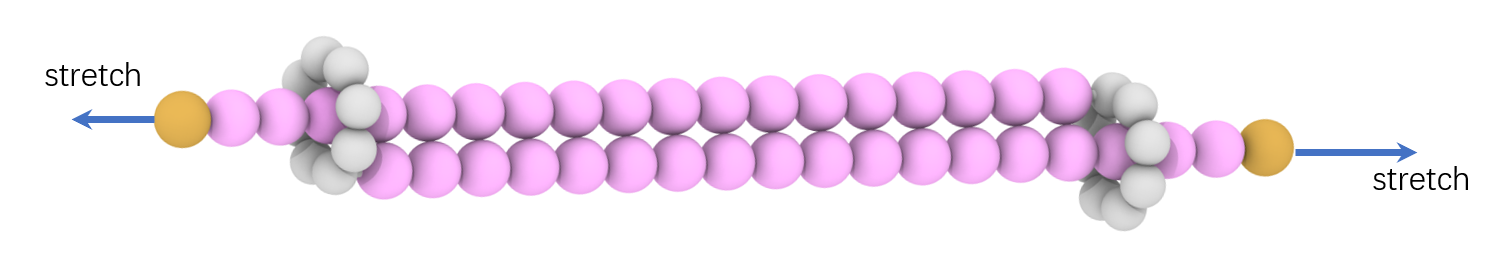

I posted the snapshot of the interlocked ring molecule, the stretching video and the main lammps script below:

##################################################################

########################## Initialization ######################

units lj
boundary p p p
atom_style full

bond_style fene
angle_style cosine
pair_style lj/cut 2.5
special_bonds fene

neighbor 1 bin
neigh_modify every 1 delay 0 check yes

#################################################################
read_data DaisyChain.data
#################################################################
mass * 1

bond_coeff * 30.0 1.5 1.0 1.0

angle_coeff 1 1000.0 # ring
angle_coeff 2 1.0 # axle

#################################################################
pair_coeff * * 1 1 0 2.5
pair_coeff 4 * 1 1 1 2.5
pair_coeff 3 5 5 1 0 2.5
pair_coeff 1 6 5 1 0 2.5
pair_coeff 1 3 1 1 1 2.5

##################################################################################
####################################################################
timestep 0.005
variable TH equal 1.5
variable T equal 0.4
variable Random equal “300*round(random(10, 5000, 424))”

##################### Equilibration ######################
reset_timestep 0
velocity all create {T} {Random}
minimize 1.0e-6 1.0e-6 10000 10000

thermo 100
thermo_style custom step etotal press vol temp density pxx pyy pzz

dump 11 all custom 2000 relax.lammpstrj id mol type x y z
fix fix1 all nvt temp {T} {T} 1
run 20000
unfix fix1
undump 11

######################## Deformation #################################

run 0
reset_timestep 0

################# Define Variables ###################

variable yl equal “ylo+1”
variable yh equal “yhi-1”
variable yh2 equal “yhi*3”
variable y_step equal “yhi/2”

variable p3 equal “ly”
variable L0 equal ${p3}
variable strain equal “(ly - v_L0)/v_L0”
variable p1 equal v_strain
variable p2 equal “-pyy/10”

#################### define groups ###################
group wall id 54
group pull id 27
group boundary union wall pull
group mobile subtract all wall #pull

#################### computes ###################
compute peratom all stress/atom NULL pair

#################### initial velocities ###################
velocity all create 1 887723

#################### fixes ###################
fix fix1 all nvt temp {T} {T} 1
fix f3 wall setforce 0.0 0.0 0.0
fix f4 pull setforce 0.0 0.1 0.0

#################### Dump ###################
dump 11 all custom 10 tensile.lammpstrj id mol type x y z
dump 100 all custom 1000 stress_per_atom.txt id type x y z c_peratom[1] c_peratom[2] c_peratom[3] c_peratom[4] c_peratom[5] c_peratom[6]
fix def1 all print 100 “{p1} {p2}” file Stress_strain.def1.txt screen no

thermo_style custom step temp pyy lx ly lz v_strain
thermo 100
thermo_style custom step temp vol press ke pe lx ly lz
timestep 0.01
run 30000

write_data final.data

print “All Done”

[akohlmey]

@Yang_Wang1

I don’t think it is normal, so how to prevent the ring crossing in the bead-spring model simulation?

I suspect that you are making the mistake of translating your expectations from macroscopic behavior and the way the visualization is done to the atomic scale without taking into account that things are different. In particular:

• bonds are not a barrier. They pull atoms together, but bonds can pass through each other easily, especially with classical models where no chemical reactions happen.
• atoms are not “hard spheres” but rather soft and squishy since the LJ potential (with default settings) is somewhat soft.
• if you pull hard enough, you will probably always observe the behavior that you are seeing. So you have to check whether the force that you are using to stretch the chains in realistic. In typical simulations of this kind, these forces are often exaggerated, so there is some movement within finite time, but experimentally, those may be orders of magnitude smaller and thus the sometimes not even accessible to MD simulation time scales.

To have chains not move through each other you have a number of options:

• make the atoms larger (increase sigma, or use pair style lj/expand) or more closely connected (reduce bond length)
• add repulsive particles that sit in the middle of each bond: pair_style srp command — LAMMPS documentation

Please note that your problem is related to this recent discussion: Help on Implementing Capsule-like Pair Interactions in LAMMPS

[srtee]

There’s pair style line/LJ, if it’s at all suitable.
